Description of product

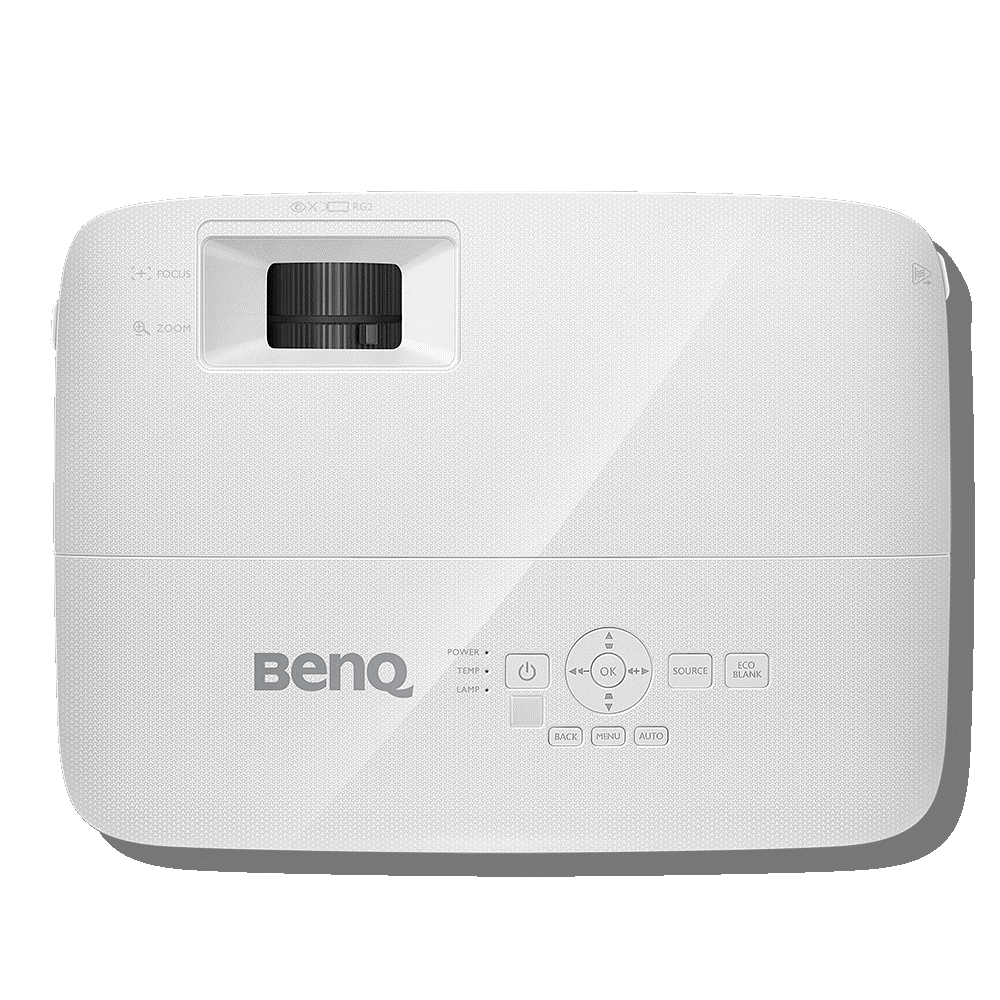

Benq MX611
Optional Accessories: QCast/QCast Mirror High Brightness of XGA 4000 ANSI Lumens, Wireless Presentation via Simple Screen Mirroring Optional
Specifications
| Interface | PC (D-sub): 1; Monitor out (D-sub 15pin): 1; S-Video in (Mini DIN 4pin): 1; Composite Video in (RCA):1; HDMI:2 (1.4a one share with MHL); USB Type A:1 (power supply, 5V, 1.5A); USB Type Mini B:1 (Download & Page up/down ); Audio in (3.5mm Mini Jack): 1; Audio out (3.5mm Mini Jack):1; RS232 (DB-9pin): 1; IR Receiver: 2(Front/Top); Security Bar : 1. |
| Display | Projection System: DLP; Resolution: XGA(1024 x 768) ; Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200); Brightness (ANSI lumens):4,000 Lumens; Contrast Ratio (FOFO): 20,000:1; Display Color: 30 Bits (1,07 billion colors); Native Aspect Ratio: Native 4:3(5 aspect ratio selectable); Light Source: Lamp; Light Source Wattage: 240W; Light Source life*: Normal 4000 hr, Economic 10000 hr, SmartEco 8000 hr; LampSave: 15000hr. |
| Model | MX611 |
| Optical | Throw Ratio : 1.96-2.15; Zoom Ratio: 1.1:1; Lens: F = 2.56 ~ 2.68, f = 22 ~ 24.1 mm; Keystone Adjustment:1D, Vertical +/- 30 degrees; Projection Offset**: 110%±2.5%; Clear Image Size (Diagonal): 60"~180" ; Image Size: 30"~300"; Horizontal Frequency: 15K~102KHz; Vertical Scan Rate: 23~120KHz. |
| Audio | Speaker: 2W x 1 |
| Compatibility | HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p; Video Compatibility: NTSC, PAL, SECAM. |
| Power | Power Supply: AC100 to 240 V, 50 to 60 Hz; Typical Power Consumption: 320W(Normal); Standby Power Consumption: <0.5W. |
| Country of Origin | Taiwan |
| Brand | Benq |
