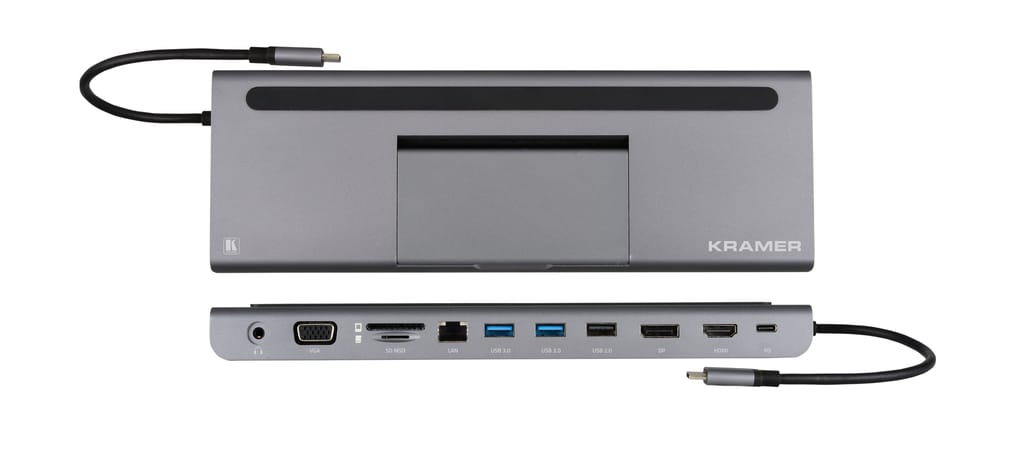

Kramer Kdock-4
Warranty: One-Year Manufacturer Warranty from the date of invoice,Conditions apply
Features
- USB–C Hub Multiport Adapter
- 4K@30 HDMI output
- 4K@30 DisplayPort output
- VGA output
- USB 3.0 data and charging ports
- Ethernet port
- USB–C charging pass–through
- SD and MicroSD ports
Description of product
KDock−4 is a USB−C hub multiport adapter specially designed to support mobile devices and is an ideal accessory for MacBook, laptops equipped with USB Type−C, mobile phones, and tablets. KDock−4 enables you to connect your USB−C device to HDMI™, DisplayPort, and VGA video outputs, 2 USB 3.0 ports, 1 USB 2.0 ports, an Ethernet port, SD and micoSD card port and USB−C charging pass−through
Specifications
| Inputs | 1 USB: On a USB Type–C male connector |
| Outputs | 1 HDMI: On a female HDMI connector 1 DisplayPort: On a female DisplayPort connector 1 VGA: On a female 15–pin HD connector |
| Ports | 2 USB 3.0: On female USB type–A connectors 1 USB 2.0: On female USB type–A connectors 1 Ethernet: On an RJ–45 connector SD: On an SD card port 1 Unbalanced Stereo: On a 3.5mm mini jack SD: On a microSD port 1 USB: On a female USB type–C connector for charging |
| Video | Max Resolution (HDMI/DP): 3840x2160P@30Hz (with one display connected) Max Resolution (HDMI/DP): 1920x1080P@60Hz (with two displays connected) Max Resolution (HDMI/DP): 1920x1080P@60Hz (with three displays connected) Max Resolution (VGA): 1920x1080P@60Hz (with one or two displays connected) Max Resolution (VGA): 1280x720P@60Hz (with three displays connected) Max Data Rate (HDMI/DP output): 10.2Gbps (3.4Gbps per graphic channel) Multiple Video Output Support: Via MST (Multi–Stream Transport) technology Content Protection (HDMI output): HDCP 1.4 |
| Extended Ethernet | Max Data Rate: 1000M (Gigabit)/100M/10M Includes: Wake–on–LAN (WoL), single Mac address, PXE boot |
| General | USB 3.0 Data Transmission Speed: Up to 5.0Gbps |
| Power | Delivery: 100W USB Charging: BC1.2 (5V 1.5A) USB Limited Current when Connected to Power via female USB-C port: 1.9A USB Limited Current when Not Connected to Power via female USB-C port: 1A |
| Country of Origin | Isreal |
| Brand | Kramer |
