Description of product

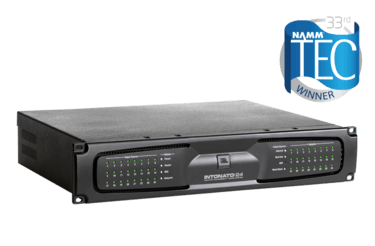

The JBL Intonato 24 Monitor Management Tuning System provides easy setup, automated calibration and comprehensive control of professional monitoring systems. Housed in a 2U rack-mount enclosure, Intonato 24 precisely calibrates and controls up to 24 speakers configured as stereo, surround or immersive audio systems. You can create and instantly recall customized routing of up to 24 analog, digital and networked audio sources. Included software and an optional Desktop Controller put the system s powerful monitoring features at your fingertips. Intonato 24 delivers the benefits of a precisely calibrated system, and takes control room monitoring to the next level. Intonato, from the Latin verb Intonare meaning tuned, matched, in tune, describes a primary attribute of all speakers in the ideal control room monitoring environment.
Specifications
| 24 Balanced ANALOG OUTPUTS | Female XLR |
| Max Output Level | plus 24 dBu, balanced, ? .006% THD |
| Maximum Cable Length | 100m/328ft on Category 5e or higher cable between devices |
| Latency | 11/Fs [0.23ms@48k, 0.11ms@96k] |
| Pass Through Latency | 4/Fs [0.08ms@48k, 0.04ms@96k] |
| Total Simultaneous Inputs | 24 (selectable among the available 24 analog, 24 AES3, and 24 BLU link input channels) |
| Max Input Level | plus 28 dBu, ?0.008% THD |
| Country of Origin | USA |
| Brand | JBL |
