Description of product

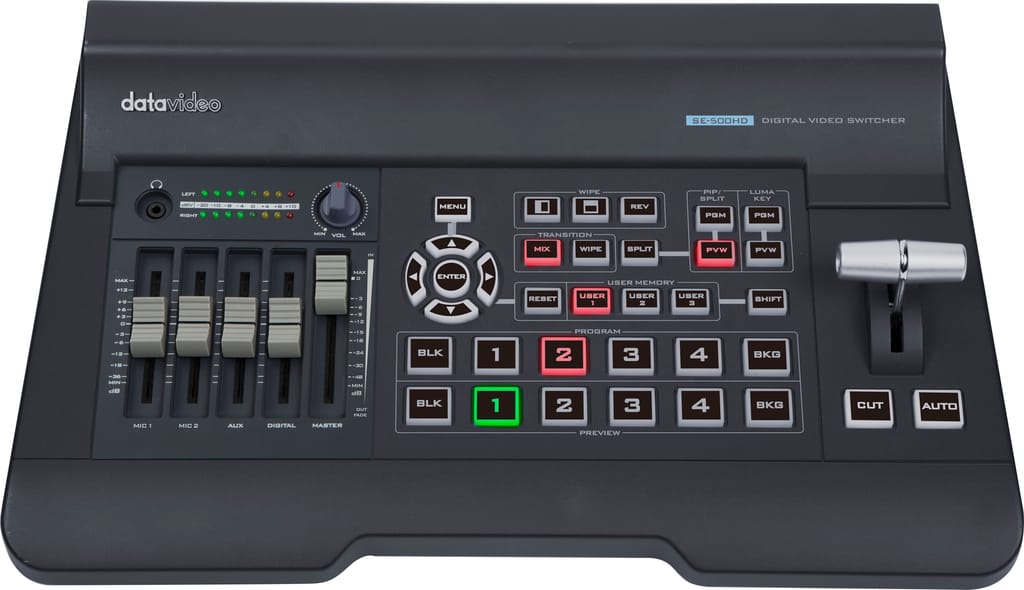

4-Channel 1080p HDMI Video Presentation Switcher,Supports up to Full HD 1080P,HDMI 1080p switching with advanced features, at a fraction of the cost,Built-in audio mixer,Supports lumakey for titles,Supports Vertical video multiview
Specifications
| Audio Input | 1 x Stereo RCA (L/R) 2 x Mono Microphone |
| Audio Output | 1 x Stereo RCA (L/R) 1 x Stereo headphone (Mini Jack with volume control) |
| Video Standard | Full HD & SD |
| Video Format | 1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz 576i 50Hz 480i 59.94Hz |
| Video Processing | HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4 |
| Video Input | 4x HDMI |
| Video Output | 2 x HDMI (1 is MV, 1 is PGM) |
| Embedded Audio Support | Input 2 channels, Output 2 channels |
| USK | Lumakey |
| Picture in Picture | 1 |
| Tally Output | 1x D-sub 15pin, dual color |
| Built-in Audio Mixer | Yes, 4 channels |
| Country of Origin | Taiwan |
| Brand | Datavideo |
