Description of product

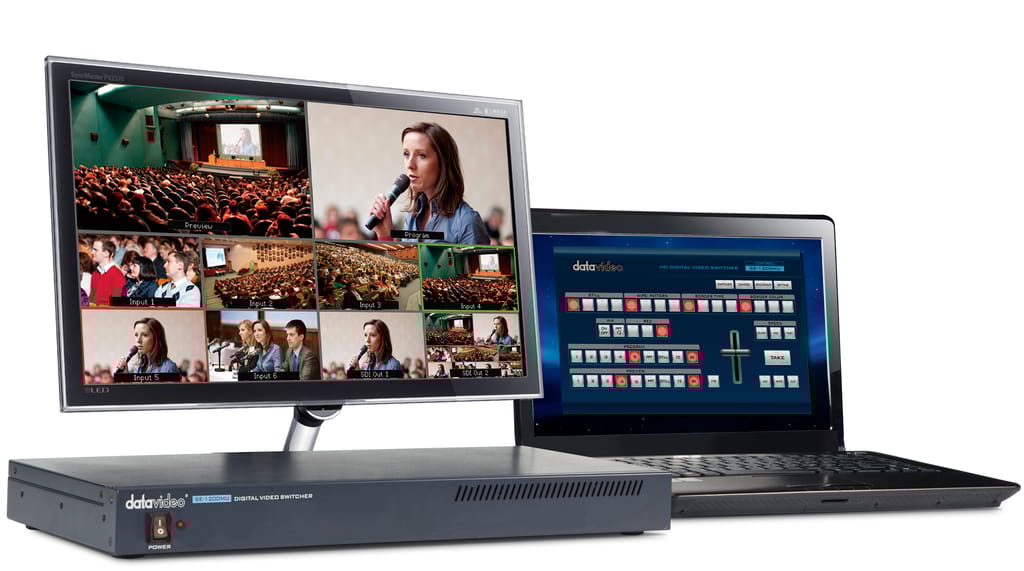

6 Input Rackmount HD Switcher,Switcher with distance control,Suitable for medium-sized productions,Stunning video effect enrich the scene,Built-in animation and backgrounds,Simple-to-use physical hardware interface
Specifications
| Audio Input | 2x Balanced XLR |
| Video Standard | HD |
| Video Format | 1080i 50/59.94/60Hz 720p 50/59.94/60Hz |
| Video Processing | SDI: 4:2:2 HDMI: YUV 4:2:2 10 bit, RGB 4:4:4 |
| Video Input | 4x HD-SDI 2x HDMI (RGB/YUV, 1080i/1080p/720p) |
| Video Output | 2x HD-SDI 2x HDMI assignable: PGM(w/DSK 1&2), PGM(w/DSK 1), PGM Clean, PVW(w/o DSK), multi-view, Input 1-6 |
| Embedded Audio Support | Input 2 channels, Output 2 channels |
| Chromakey | 2 |
| USK | 2x Keyer support Chromakey/ Linear/ Luma Key |
| DSK | 2x DSK support Lumakey/ Linear key (Key / Fill) |
| Picture in Picture | 1 |
| Still Store | 500 |
| Tally Output | 1x D-sub 15pin, dual color |
| Country of Origin | Taiwan |
| Brand | Datavideo |
