Description of product

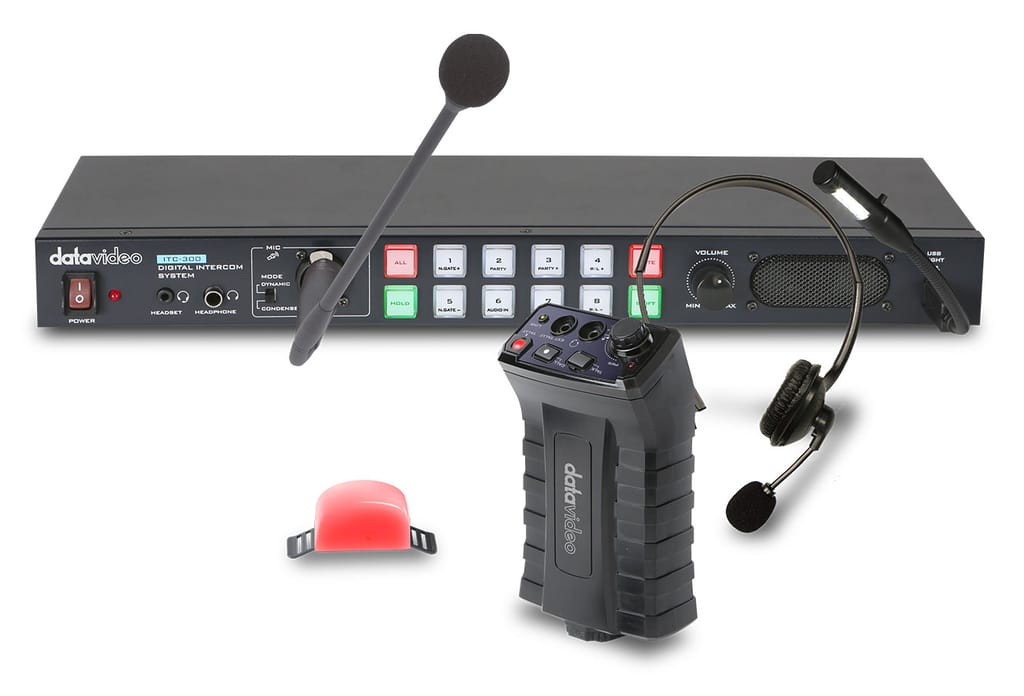

Digital Intercom System,Intercom system evolution and innovation,Single CAT cable for everything,Rackmountable 8 channels Intercom System,Special design for your RJ-45 connector
Specifications
| Tally | 2 x 15 Pin D-Sub Female Sockets for Tally A and Tally B |
| MIC / Headset | 1 x 3.5mm Stereo Jack Socket (For Headphone / Microphone combination) Headset Impedance 24 ohm 100mW(min) Microphone Level -45.2dB (Tip: Mic?Ring: Phone?Sleeve: GND) |
| Headphone | 1 x 1/4" (6.3mm) Stereo Headphone Socket (Tip: Phone?Ring: Phone?Sleeve: GND) |
| Light Socket (DC 12 V) | Light Power Consumption: +5 V / 500 mA |
| Microphone | 3 Pin XLR / 1/4 (6.3mm) Socket x 1Switchable Condenser / DynamicInput Microphone Level -67dBPIN1:N/A,PIN2:MIC,PIN3:GND |
| Frequency Response | 300 Hz-7 KHz, < +/-3dB |
| THD | < 0.1% @1KHz |
| S/N | >70dB |
| Built-in Speaker | 3W Speaker is mute when headphones or mic / headset are connected to the ITC-300 |
| Operating Range | Up to 100m between Base Station and Slave |
| Country of Origin | Taiwan |
| Brand | Datavideo |
