Description of product

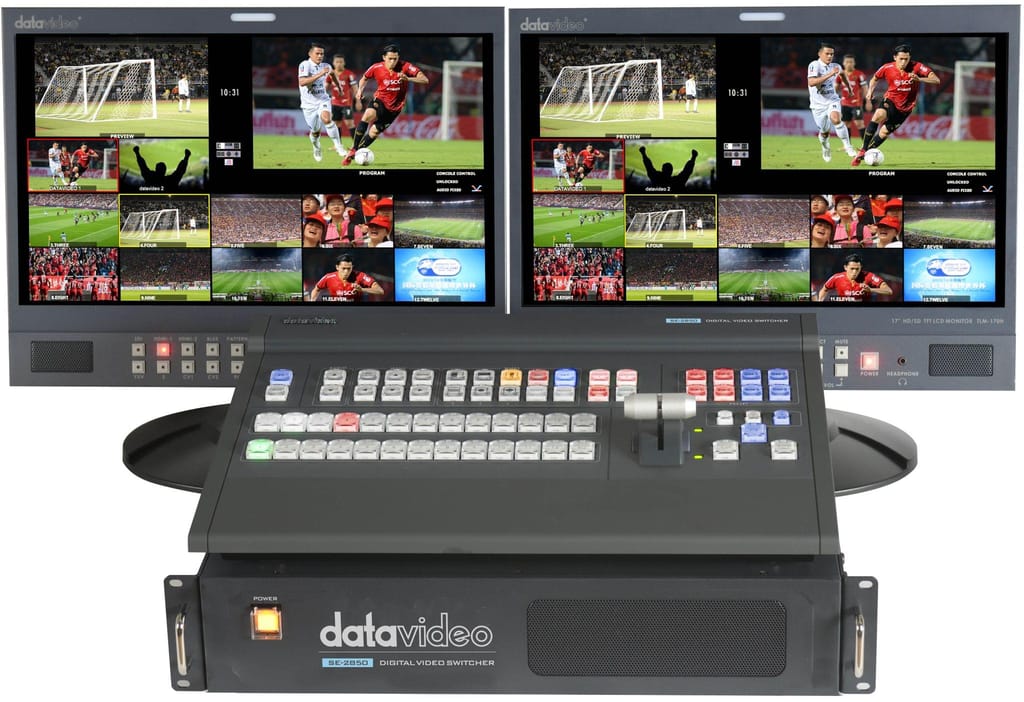

HD/SD 8/12-Channel Digital Video Switcher The SE-2850 is the only rack-mounted, 8-input switcher that can be upgraded to 12 inputs to support even larger productions. (SDI and HDMI inputs) Connect cameras, computers, and other devices with different video resolutions. Thanks to its built-in video scaler, the SE-2850 will scale all the inputs for the proper working environment.
Specifications
| Down-converted Output | 4x SDI |
| Computer Graphic Interface | Max 3 via HDMI |
| Video Standard | HD & SD |
| Video Input | Standard: 8x SDI, 2x HDMI Max: 12x SDI, 3x HDMI |
| Video Output | 4x SDI assignable: PGM, PVW, AUX & Clean Out 2x HDMI assignable: PGM & multi-view |
| Embedded Audio Support | Input up to 16 channels, Output 4 channels |
| Audio Delay Calibration | Up to 8 frames per channel (*SDI input audio only) |
| A+V Switching | Yes |
| Logo Insertion | 2 (or 1 logo + 1 clock) |
| Input Routable / Crosspoint | All 12, repeatable |
| Embedded Audio Support Input | Input up to 16 channels, Output 4 channels |
| DSK | 2x DSK support Lumakey/ Linear key (Key / Fill) |
| Picture in Picture | 2 |
| Effects | FTB, Cut, 8 Wipe with border |
| Tally Output | 1x D-sub 25pin, dual color |
| Country of Origin | Taiwan |
| Brand | Datavideo |
